NOTEPAD++ SOURCECOOKIFIER SETTING FOR CLIPPER LANGUAGE

Notepad++ is a very excellent programmer editor for Windows. It has plugin system which enhances it's functionality. Sourcecookifier is a plugin I like very much, it is a simple plugin which shows the outline of your source code.

The screenshot below shows a pascal (delphi) source code. We can easily see the structure of the source code, and we can go to a particular method/function just by one click.


Sourcecookifier recognizes several programming languages, but it does not support Clipper language. Fortunately, it is very easy to add Clipper configure. Follow this step:

  1. Click setting icon (the yellow gear icon) on the sourcecookiefier window.

  2. Click Language Settings
  3. On the setting form, type Clipper on the language box and click add.


  4. Set the file extension setting, add .prg to the extenson box


  5. On Tag Type choose any letter you like. Here I add “f” for “function” (any letter will be fine)


  6. On Appearance box, you can write the description, choose Icon etc. It is not too important, I just put [function] in description and leave the other fields as it is.

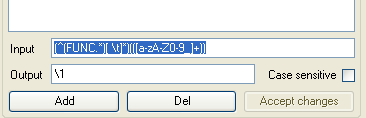

  7. Set the regular expression, fill the input and output as follow
    Input: (^(FUNC.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output: \1
    Clear the case sensitive box and click Add



  8. Repeat step 5 to step 7 to define additional keyword regexes for static function, procedure, static procedure, create class and method. Here are the regexes:

    static function: Input = (^(STAT.*)(FUNC.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output = \1
    procedure: Input = (^(PROC.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output = \1
    static procedure: Input = (^(STAT.*)(PROC.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output = \1
    create class: Input = (^(CREA.*)(CLAS.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output = \1
    method: Input = (^(METH.*)[ \t]*)(([a-zA-Z0-9_]+))
    Output = \1

  9. The result is like this.


    It is not perfect yet, in the example above “METHOD Init(...” scanned as “METHOD Ini”, I still don't know how to resolve.
